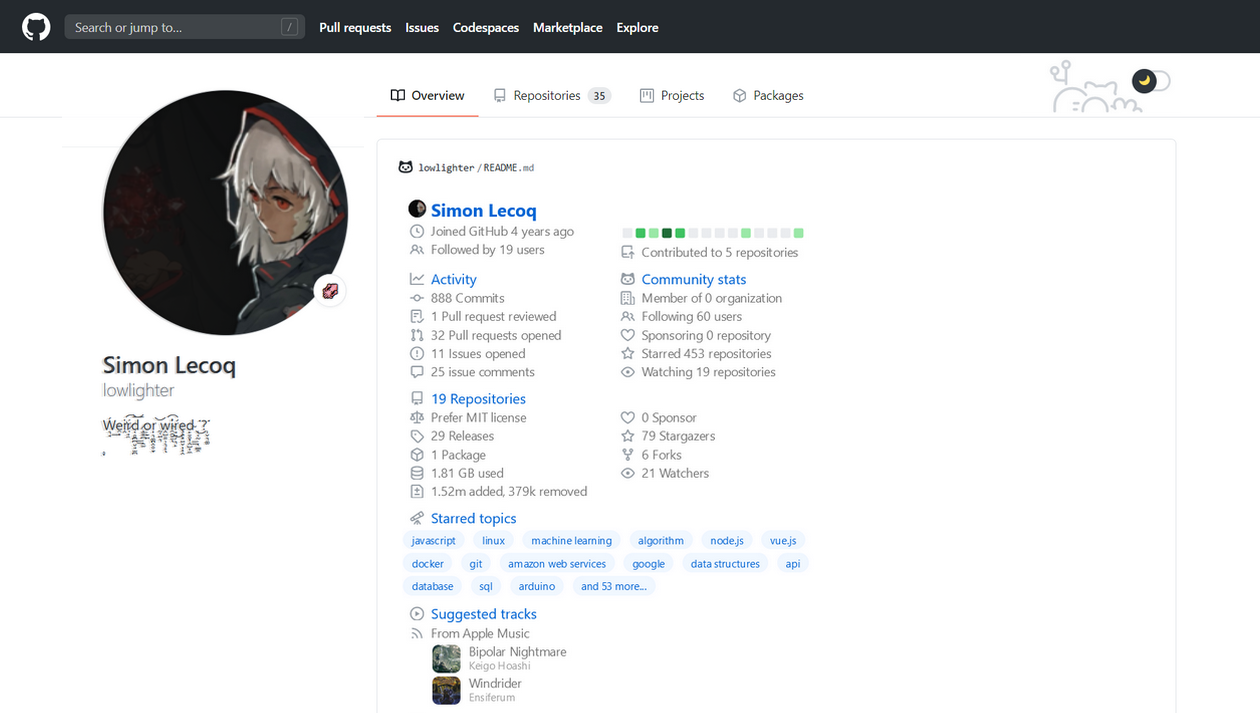

# 📊 Metrics ![Build](https://github.com/lowlighter/metrics/workflows/Build/badge.svg) Generate your metrics that you can embed everywhere, including your GitHub profile readme! [![Metrics](https://github.com/lowlighter/lowlighter/blob/master/metrics.classic.svg)](https://metrics.lecoq.io) But there's more with [plugins](https://github.com/lowlighter/metrics/tree/master/source/plugins) and [templates](https://github.com/lowlighter/metrics/tree/master/source/templates)!
⏱️ Google PageSpeed plugin 📅 Isometric calendar plugin
Detailed audit version
With screenshot version
Full year version
🎼 Favorite music tracks plugin 🎧 Recently listened music plugin
🈷️ Most used languages plugin 🎟️ Follow-up plugin
📌 Starred topics plugin 🗂️ Active projects plugin
Mastered and known technologies version
👨‍💻 Lines of code plugin 🧮 Repositories traffic plugin
🐤 Tweets plugin ✒️ Recent posts plugin
💡 Coding Habits plugin 📰 Activity plugin
With charts version
✨ Stargazers evolution 🌟 Recently starred repositories
🎫 Gists plugin 🧑‍🤝‍🧑 People plugin
Followed people version
🗃️ Header special features
More to come soon!
Classic template Terminal template
Repository template
A special template to embed on any repository readme!
More to come soon!
## 🦑 Interested to get your own? Try it now at [metrics.lecoq.io](https://metrics.lecoq.io/) with your GitHub username! Because certain plugins require additional configuration and setup, some of them are not available at [metrics.lecoq.io](https://metrics.lecoq.io/). For a fully-featured experience, consider using this as a [GitHub Action](https://github.com/marketplace/actions/github-metrics-as-svg-image) instead! # 📜 How to use? ## ⚙️ Using GitHub Action on your profile repository (~5 min setup) Set up a GitHub Action which runs periodically and pushes your generated metrics image on your repository. See all supported options in [action.yml](action.yml). Assuming your username is `my-github-user`, you can then embed your metrics in your repository readme like below: ```markdown ![Metrics](https://github.com/my-github-user/my-github-user/blob/master/github-metrics.svg) ``` (or, for a new repository with a default branch of `main`): ```markdown ![Metrics](https://github.com/my-github-user/my-github-user/blob/main/github-metrics.svg) ```

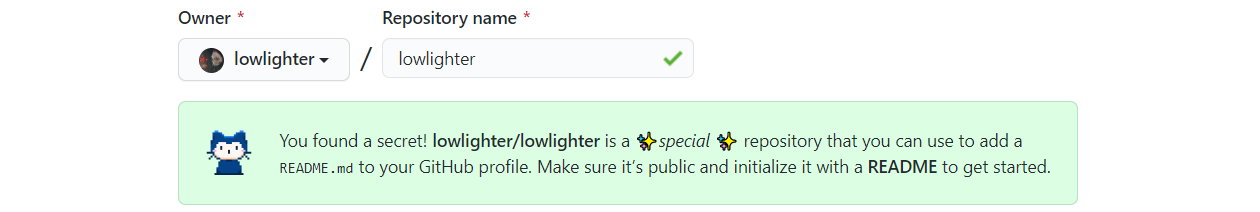

💬 How to setup? ### 0. Prepare your personal repository Create a repository with the same name as your GitHub username if it's not already done. ![Setup personal repository](.github/readme/imgs/setup_personal_repository.png) Its `README.md` will be displayed on your user profile: ![GitHub Profile Example](.github/readme/imgs/example_github_profile.png) ### 1. Create a GitHub token From the `Developer settings` of your account settings, select `Personal access tokens` to create a new token. No additional scopes are needed, unless you want to include your private repositories metrics. ![Setup a GitHub personal token](.github/readme/imgs/setup_personal_token.png) With a scope-less token, you can still display private contributions by enabling `Include private contributions on my profile` in your account settings: ![Enable "Include private contributions on my profile`"](.github/readme/imgs/setup_private_contributions.png) Some plugins also require additional scopes, which is indicated in their respective documentation. In case your token does not have the required scope (and `plugins_errors_fatal` is not enabled), it will be directly notified in the plugin render like below: ![Plugin error example](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.error.svg) ### 2. Set your GitHub token in your personal repository secrets Go to the `Settings` of your personal repository to create a new secret and paste your freshly generated GitHub token there. ![Setup a repository secret](.github/readme/imgs/setup_repository_secret.png) ### 3. Create a new GitHub Action workflow on your personal repository Create a new workflow from the `Actions` tab of your personal repository and paste the following: ```yaml name: Metrics on: # Schedule updates schedule: [{cron: "0 * * * *"}] # Lines below let you run workflow manually and on each commit push: {branches: ["master", "main"]} workflow_dispatch: jobs: github-metrics: runs-on: ubuntu-latest steps: # See action.yml for all options - uses: lowlighter/metrics@latest with: # Your GitHub token token: ${{ secrets.METRICS_TOKEN }} # GITHUB_TOKEN is a special auto-generated token restricted to current repository, which is used to push files in it committer_token: ${{ secrets.GITHUB_TOKEN }} ``` See all supported options in [action.yml](action.yml). When using a token with additional permissions, it is advised to fork this repository to minimize security risks: ```yaml - uses: my-github-username/metrics@latest ``` In this case, consider watching new releases of this repository to stay up-to-date and enjoy latest features! #### Preview vs release It is possible to use `@master` instead of `@latest` to use new features before their official release. Breaking changes may occur occasionally on `@master`, which could result in your metrics not being generated temporarily. #### What will happen? A new metrics image will be generated and committed to your repository on each run. ![Action update example](.github/readme/imgs/example_action_update.png) #### Workflow examples Check out this [workflow](https://github.com/lowlighter/lowlighter/blob/master/.github/workflows/metrics.yml) file which generates metrics daily. Note that most of steps presented there are illustrative examples for this readme and are actually not needed to generate your own metrics. ### 4. Embed the link into your README.md Edit your repository readme and add your metrics image: ```markdown ![Metrics](https://github.com/my-github-user/my-github-user/blob/master/github-metrics.svg) ```
## 💕 Using the shared instance (~1 min setup, but with limitations) For convenience, you can use the shared instance available at [metrics.lecoq.io](https://metrics.lecoq.io) without any additional setup. Assuming your username is `my-github-user`, you can embed your metrics in your repository readme like below: ```markdown ![Metrics](https://metrics.lecoq.io/my-github-user) ``` Visit [metrics.lecoq.io](https://metrics.lecoq.io) for more informations.
💬 Restrictions and fair use Since GitHub API has rate limitations, the shared instance has a few limitations: * Images are cached for 1 hour * Your generated metrics won't be updated during this amount of time when queried * A rate limiter is enabled, although it won't affect already cached users metrics * Plugins which consume additional requests, or require additional token scopes are disabled If you're appreciating this project, consider using it as a GitHub Action instead.
## 🏗️ Deploying your own web instance (~15 min setup, depending on your sysadmin knowledge) It is possible to set up your own instance if you don't want to use GitHub Actions or if you want to allow others users on your instance. When sharing an instance, it is advised to restrict the number of users which can use it through the rate limiter or the access list, to avoid reaching the requests limit of GitHub APIs. See all supported options in [settings.example.json](settings.example.json).

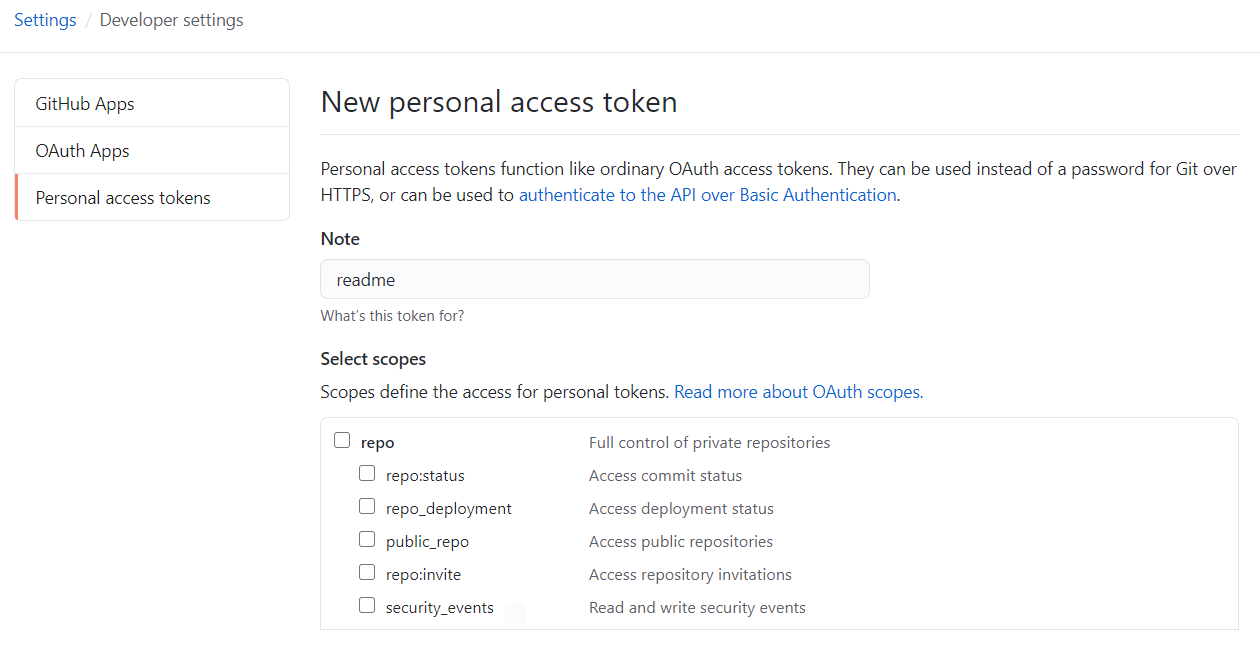

💬 How to setup? ### 0. Prepare your server You will need a server where you can set up and run a NodeJS application. ### 1. Create a GitHub token From the `Developer settings` of your account settings, select `Personal access tokens` to create a new token. No additional scopes are needed. ![Setup a GitHub personal token](.github/readme/imgs/setup_personal_token.png) ### 2. Install dependencies Connect to server and ensure [NodeJS](https://nodejs.org/en/) is installed (see tested version in [workflow](.github/workflows/workflow.yml#L18)). Run the following commands to clone this repository, install dependencies and copy configuration example file: ```shell git clone https://github.com/lowlighter/metrics.git cd metrics/ npm install --only=prod cp settings.example.json settings.json ``` ### 3. Configure your instance Edit `settings.json` to configure your instance. ```javascript { //See settings.example.json for all options //GitHub API token "token":"****************************************" } ``` See all supported options in [settings.example.json](settings.example.json). ### 4. Start your instance Run the following command to start your instance once you've finished configuring it: ```shell npm start ``` From your browser, you should be able to access your web instance on the port you provided in `setting.json`. ### 5. Embed the link into your README.md Edit your repository readme and add your metrics image from your server domain: ```markdown ![Metrics](https://my-personal-domain.com/my-github-user) ``` ### 6. (optional) Setup as service on your instance To ensure that your instance will restart if it reboots or crashes, you should set it up as a service. This is described below for Linux-like systems which support *systemd*. Create a new service file `/etc/systemd/system/github_metrics.service` and paste the following after editing paths inside: ``` [Unit] Description=Metrics After=network-online.target Wants=network-online.target [Service] Type=simple WorkingDirectory=/path/to/metrics ExecStart=/usr/bin/node /path/to/metrics/index.mjs [Install] WantedBy=multi-user.target ``` Reload services, enable it, start it and check if it is up and running: ```shell systemctl daemon-reload systemctl enable github_metrics systemctl start github_metrics systemctl status github_metrics ```
⚠️ HTTP errors code The following error codes may be encountered on a web instance: | Error code | Description | | ------------------------- | -------------------------------------------------------------------------- | | `400 Bad request` | Invalid query (e.g. unsupported template) | | `403 Forbidden` | User not allowed in `restricted` users list | | `404 Not found` | GitHub API did not found the requested user | | `429 Too many requests` | Thrown when rate limiter is trigerred | | `500 Internal error` | Server error while generating metrics images (check logs for more details) | | `503 Service unavailable` | Maximum user capacity reached, only cached images can be accessed for now |
🔗 HTTP parameters Generated metrics images from a web instance can be configured through URL parameters. #### Configuring base content Base content is enabled by default, but passing `?base=0` will disable all base content. You can choose to selectively enable or disable a specific `
` with `?base.
=<1|0>`. For example, to opt out from `activity`, `community` and `metadata`, append `?base.activity=0&base.community=0&base.metadata=0` to your metrics url. #### Configuring plugins Plugins are disabled by default, but passing `?=1` will enable a specific ``. Plugin options can be passed with `?.
# 📚 Documentation ## 🖼️ Templates Templates allow you to change the general appearance of your metrics images. Some metrics may be displayed differently, and all plugins may not be supported or behave the same from one template to another. Consider trying them at [metrics.lecoq.io](https://metrics.lecoq.io)! The default template is `classic`. ### 🧰 Template/plugin compatibily matrix
Template\Plugin 🗃️ ⏱️ 📅 🎼 🈷️ 🎟️ 📌 🗂️ 👨‍💻 🧮 🐤 ✒️ 💡 📰 🌟 🎫 🧑‍🤝‍🧑
Classic ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️
Terminal ✔️P ✔️ ✔️ ✔️ ✔️ ✔️ ✔️
RepositoryR ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️ ✔️
**Legend** * **P**: Partial support *(Hover cell for more informations)* * **M**: Feature is not released yet but is available on `@master` * **N**: Feature is already released, but new ones are available on `@master` * **R**: Repository template (all plugins content will be restricted to related repository)
💬 Using community templates 🚧 This feature is available as pre-release on @master branch (unstable) It is possible to use official releases along with custom templates from forked repositories (not necessarily your own). This can be used to use different layouts, styles colors, etc. Use `setup_community_templates` option to specify additional external sources in the following format: `user/repo@branch:template`. Templates added this way will be downloaded through git and will be available with the same template name but prefixed with `@`. For example, to use the `super-metrics` template from `github-user`'s fork, add the following: ```yaml - uses: lowlighter/metrics@master with: # ... other options template: "@super-metrics" setup_community_templates: github-user/metrics@master:classic ``` By default, community templates have their `template.mjs` removed and fallback to the one used by `classic` template. It means that they're restricted to common and plugins data, to prevent malicious code injection and token leaks. If you really trust a template, it is possible to bypass this behaviour by appending `+trust` at the end of their source like below: ```yaml - uses: lowlighter/metrics@master with: # ... other options setup_community_templates: github-user/metrics@master:classic+trust ``` To create a new community template, just fork this repository and create a folder in `/source/templates` with the same structure as current templates. Then, it's just as simple as HTML and CSS with a bit of JavaScript!
💬 Using repository template To use `repository` template, you'll need to provide a repository name in `query` option. If the repository owner is different from the `token` owner, use the `user` option to specify it. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options template: repository user: "repository-owner" query: '{"repo":"repository-name"}' ```
## 🧩 Plugins Plugins are features which can provide additional metrics and features. In return, they may require additional configuration and consume additional API requests. ### 🗃️ Base content Generated metrics contains a few sections that are enabled by default, such as recent activity, community stats and repositories stats. This can be configured by explicitly opting out from them.
💬 About By default, generated metrics contain the following sections: * `header`, which usually contains your username, your two-week commits calendars and a few additional data * `activity`, which contains your recent activity (commits, pull requests, issues, etc.) * `community`, which contains your community stats (following, sponsors, organizations, etc.) * `repositories`, which contains your repositories stats (license, forks, stars, etc.) * `metadata`, which contains informations about generated metrics You can explicitely opt out from them, which can be useful if you only want to keep a few sections or to use a plugin as standalone. For example, to keep only `header` and `repositories` sections, add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options base: "header, repositories" # opt-out from "activity", "community" and "metadata" ``` #### 🏦 Organizations memberships By default, the `community` section only counts public organization memberships. You can change your membership visibility in the `People` tab of your organization: ![Publish organization membership](.github/readme/imgs/setup_public_membership_org.png) To include private organization memberships, you'll need to add the `read:org` scope to your personal token. ![Add read:org scope to personal token](.github/readme/imgs/setup_token_org_read_scope.png) You may also need to [authorize your personal token](https://docs.github.com/en/free-pro-team@latest/github/authenticating-to-github/authorizing-a-personal-access-token-for-use-with-saml-single-sign-on) if you're using single sign-on and are encounting errors.
### ⏱️ PageSpeed The *pagespeed* plugin adds the performance statistics of the website attached on your account: ![Pagespeed plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.pagespeed.svg) These are computed through [Google's PageSpeed API](https://developers.google.com/speed/docs/insights/v5/get-started), which yields the same results as [web.dev](https://web.dev).
💬 About Although not mandatory, you can generate an API key for PageSpeed API [here](https://developers.google.com/speed/docs/insights/v5/get-started) to avoid 429 HTTP errors. The website attached to the GitHub profile will be the one audited. Expect 10 to 30 seconds to generate the results. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_pagespeed: yes plugin_pagespeed_token: ${{ secrets.PAGESPEED_TOKEN }} ``` You can display a detailed report along with scores: ![Pagespeed plugin (detailed)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.pagespeed.detailed.svg) See [performance scoring](https://web.dev/performance-scoring/) and [score calculator](https://googlechrome.github.io/lighthouse/scorecalc/) for more informations about how PageSpeed compute these statistics. Add the following to your workflow instead: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_pagespeed: yes plugin_pagespeed_detailed: yes plugin_pagespeed_token: ${{ secrets.PAGESPEED_TOKEN }} ``` You can also display the screenshot taken by PageSpeed API: ![Pagespeed plugin (screenshot)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.pagespeed.screenshot.svg) Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_pagespeed_screenshot: yes ``` It is possible to audit a different website from the one linked to your GitHub account by using the `plugin_pagespeed_url` option. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_pagespeed_url: https://******** ```
### 📅 Isometric calendar The *isocalendar* plugin displays an isometric view of your commits calendar, along with a few stats like current streak and commit average per day. ![Isocalendar plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.isocalendar.svg)
💬 About It will consume two additional GitHub requests. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_isocalendar: yes ``` Use the following instead to display a full-year instead: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_isocalendar: yes plugin_isocalendar_duration: full-year ``` ![Isocalendar plugin (full year)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.isocalendar.fullyear.svg)
### 🎼 Music The *music* plugin can work in the following modes: #### Playlist mode Select randomly a few tracks from a given playlist so you can display your favorite tracks to your visitors. ![Music plugin (playlist)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.music.playlist.svg)
💬 About Select a music provider below for instructions.

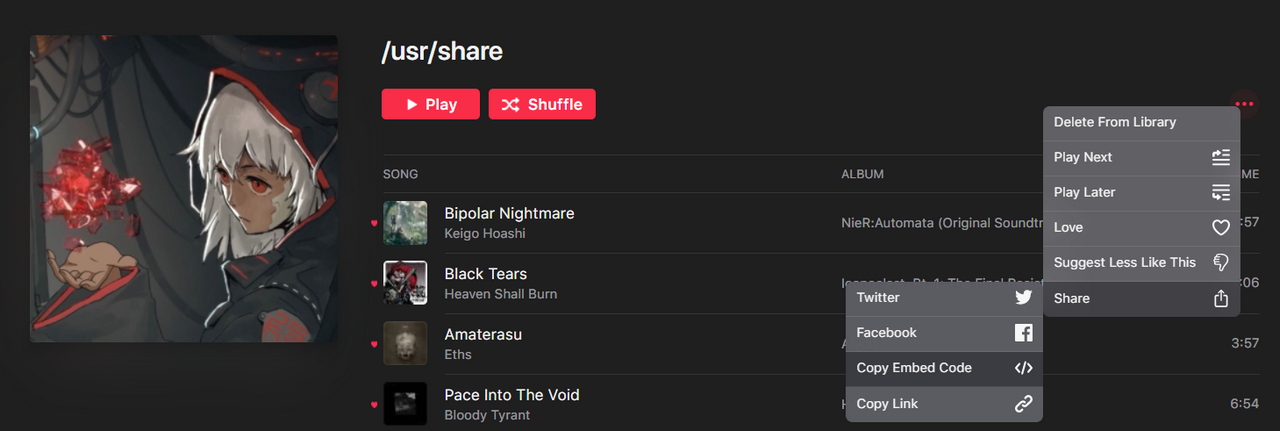

Apple Music Extract the *embed* URL of the playlist you want to share. To do so, connect to [music.apple.com](https://music.apple.com/) and select the playlist you want to share. From `...` menu, select `Share` and `Copy embed code`. ![Copy embed code of playlist](.github/readme/imgs/plugin_music_playlist_apple.png) Extract the source link from the code pasted in your clipboard: ```html ``` Finish the plugin setup by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_music: yes plugin_music_provider: apple plugin_music_mode: playlist plugin_music_playlist: https://******** # Extracted source link plugin_music_limit: 4 # Set the number of tracks you want to display ```

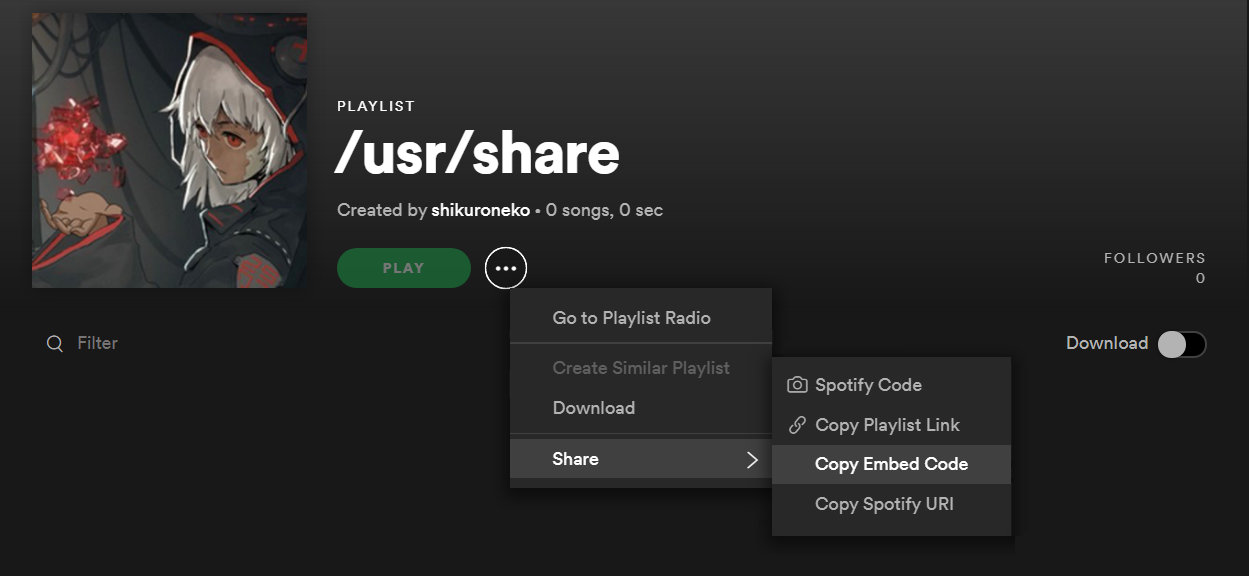

Spotify Extract the *embed* URL of the playlist you want to share. To do so, Open Spotify and select the playlist you want to share. From `...` menu, select `Share` and `Copy embed code`. ![Copy embed code of playlist](.github/readme/imgs/plugin_music_playlist_spotify.png) Extract the source link from the code pasted in your clipboard: ```html ``` Finish the plugin setup by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_music: yes plugin_music_provider: spotify plugin_music_mode: playlist plugin_music_playlist: https://******** # Extracted source link plugin_music_limit: 4 ```
#### Recently played mode Display tracks you have played recently. ![Music plugin (recently played)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.music.recent.svg)
💬 About Select a music provider below for additional instructions.
Apple Music This mode is not supported for now. I tried to find a way with *smart playlists*, *shortcuts* and other stuff but could not figure a workaround to do it without paying the $99 fee for the developer program. So unfortunately this isn't available for now.

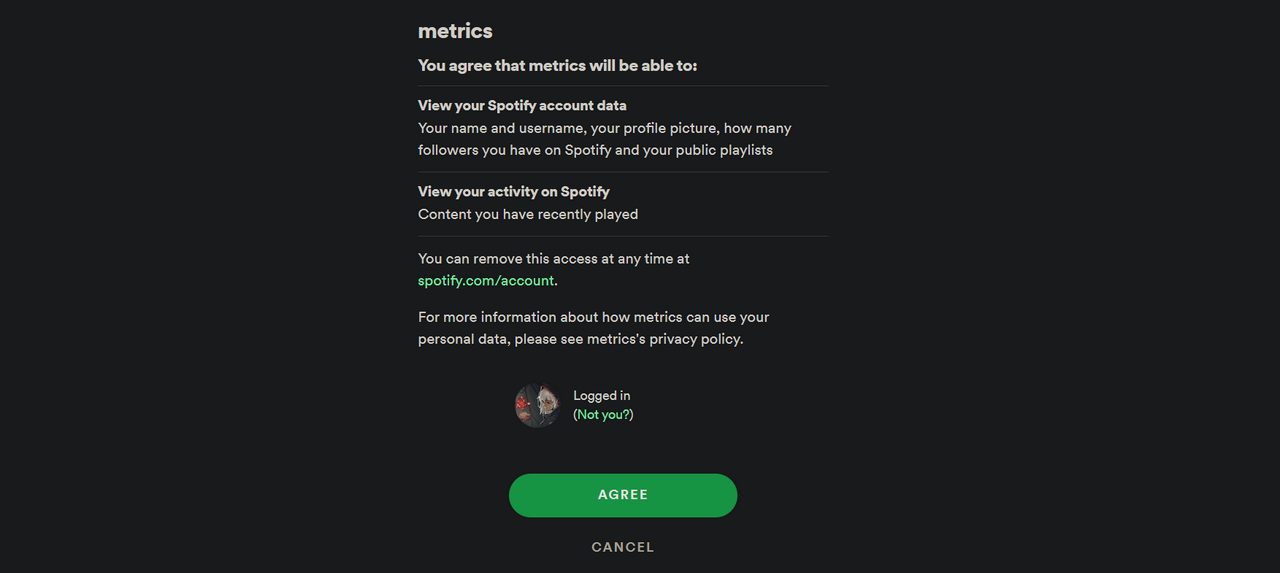

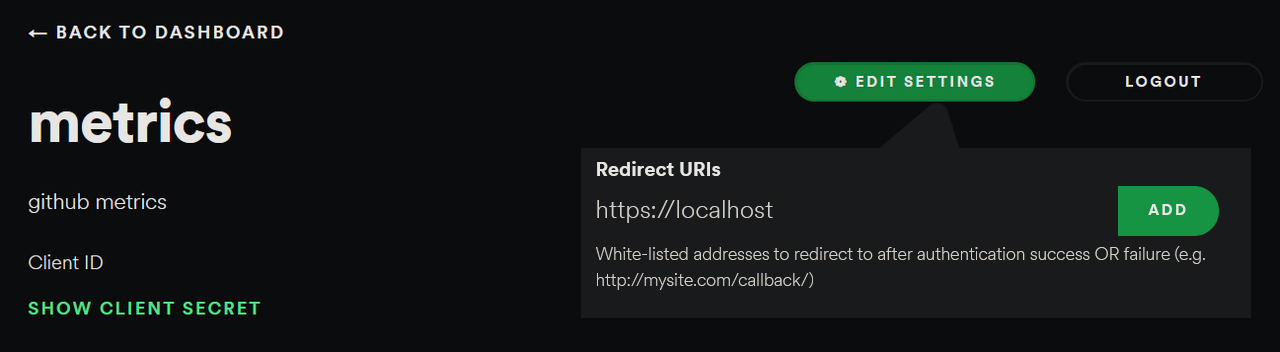

Spotify Spotify does not have *personal tokens*, so it makes the process a bit longer because you're required to follow the [authorization workflow](https://developer.spotify.com/documentation/general/guides/authorization-guide/)... Follow the instructions below for a *TL;DR* to obtain a `refresh_token`. Sign in to the [developer dashboard](https://developer.spotify.com/dashboard/) and create a new app. Keep your `client_id` and `client_secret` and let this tab open for now. ![Add a redirect url](.github/readme/imgs/plugin_music_recent_spotify_token_0.png) Open the settings and add a new *Redirect url*. Normally it is used to setup callbacks for apps, but just put `https://localhost` instead (it is mandatory as per the [authorization guide](https://developer.spotify.com/documentation/general/guides/authorization-guide/), even if not used). Forge the authorization url with your `client_id` and the encoded `redirect_uri` you whitelisted, and access it from your browser: ``` https://accounts.spotify.com/authorize?client_id=********&response_type=code&scope=user-read-recently-played&redirect_uri=https%3A%2F%2Flocalhost ``` When prompted, authorize your application. ![Authorize application](.github/readme/imgs/plugin_music_recent_spotify_token_1.png) Once redirected to `redirect_uri`, extract the generated authorization `code` from your url bar. ![Extract authorization code from url](.github/readme/imgs/plugin_music_recent_spotify_token_2.png) Go back to your developer dashboard tab, and open the web console of your browser to paste the following JavaScript code, with your own `client_id`, `client_secret`, authorization `code` and `redirect_uri`. ```js (async () => { console.log(await (await fetch("https://accounts.spotify.com/api/token", { method:"POST", headers:{"Content-Type":"application/x-www-form-urlencoded"}, body:new URLSearchParams({ grant_type:"authorization_code", redirect_uri:"https://localhost", client_id:"********", client_secret:"********", code:"********", }) })).json()) })() ``` It should return a JSON response with the following content: ```json { "access_token":"********", "expires_in": 3600, "scope":"user-read-recently-played", "token_type":"Bearer", "refresh_token":"********" } ``` With your `client_id`, `client_secret` and `refresh_token` you can finish the plugin setup by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_music: yes plugin_music_provider: spotify plugin_music_token: "${{ secrets.SPOTIFY_CLIENT_ID }}, ${{ secrets.SPOTIFY_CLIENT_SECRET }}, ${{ secrets.SPOTIFY_REFRESH_TOKEN }}" plugin_music_mode: recent plugin_music_limit: 4 ```
### 🈷️ Languages The *languages* plugin displays which programming languages you use the most across all your repositories. ![Languages plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.languages.svg)
💬 About Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_languages: yes plugin_languages_ignored: "" # List of comma separated languages to ignore plugin_languages_skipped: "" # List of comma separated repositories to skip ```
### 🎟️ Follow-up The *follow-up* plugin displays the ratio of open/closed issues and the ratio of open/merged pull requests across all your repositories, which shows if they're well-maintained or not. ![Follow-up plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.followup.svg)
💬 About Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_followup: yes ```
### 📌 Topics The *topics* plugin displays your [starred topics](https://github.com/stars?filter=topics). Check out [GitHub topics](https://github.com/topics) to search interesting topics. ![Topics plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.topics.svg)
💬 About This uses puppeteer to navigate through your starred topics page. You can choose to display and order topics by: - Most `stars` - Recent `activity` - Recently `starred` by you - `random` Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_topics: yes plugin_topics_sort: stars plugin_topics_limit: 15 ``` It is possible to display starred topics as `Mastered and known technologies` instead: ![Topics plugin (mastered)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.topics.mastered.svg) Add the following to your workflow instead: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_topics: yes plugin_topics_mode: mastered plugin_topics_limit: 0 ```
### 🗂️ Projects ⚠️ This plugin requires a personal token with public_repo scope. The *projects* plugin displays the progress of your profile projects. ![Projects plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.projects.svg)
💬 About It will consume an additional GitHub request. Because of GitHub REST API limitation, provided token requires `public_repo` scope to access projects informations. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_projects: yes plugin_projects_limit: 4 ``` Note that by default, profile projects have progress tracking disabled. To enable it, open the `≡ Menu` and edit the project to opt-in to `Track project progress` (it can be a bit confusing since it's actually not in the project settings). ![Enable "Track project progress"](.github/readme/imgs/plugin_projects_track_progress.png)

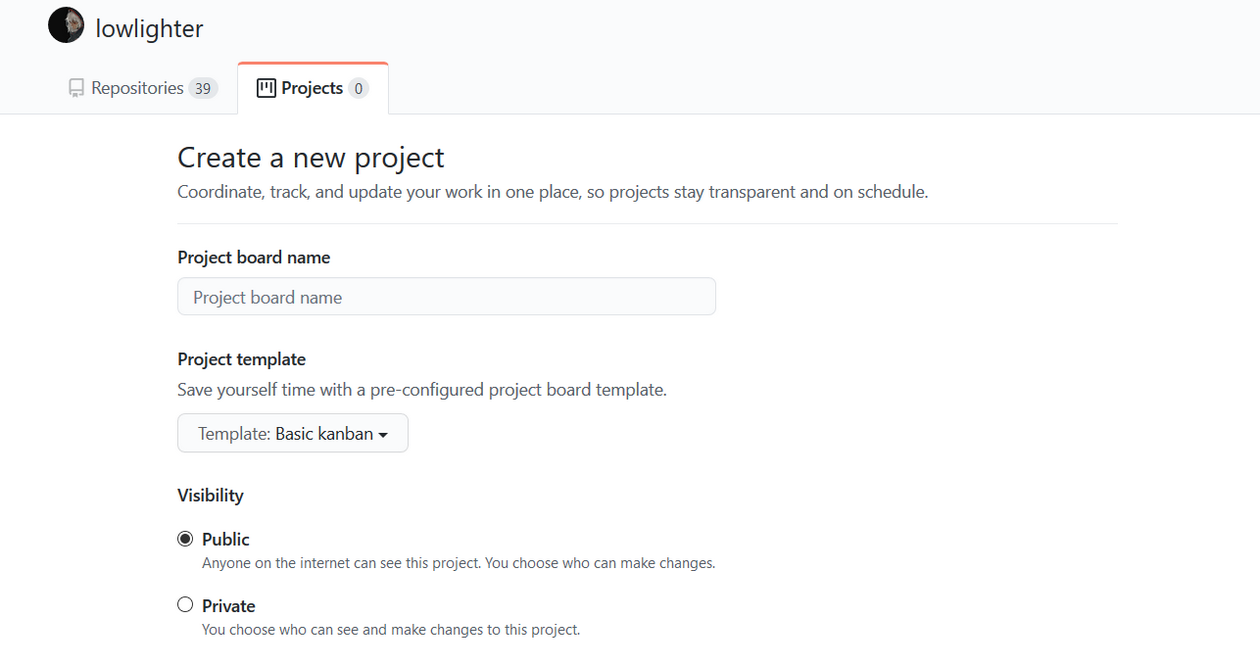

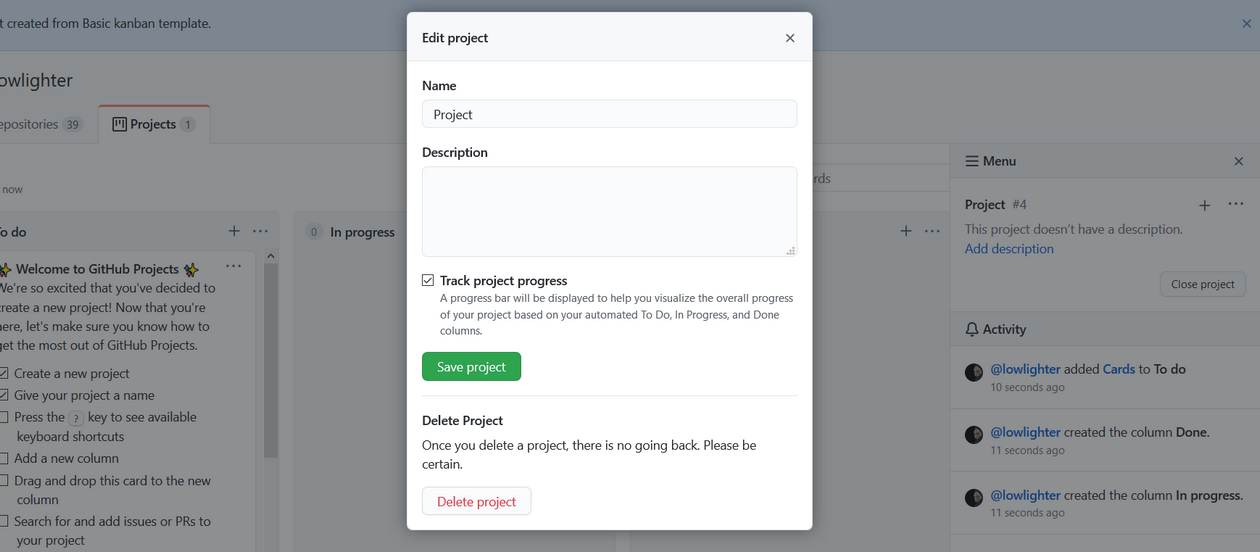

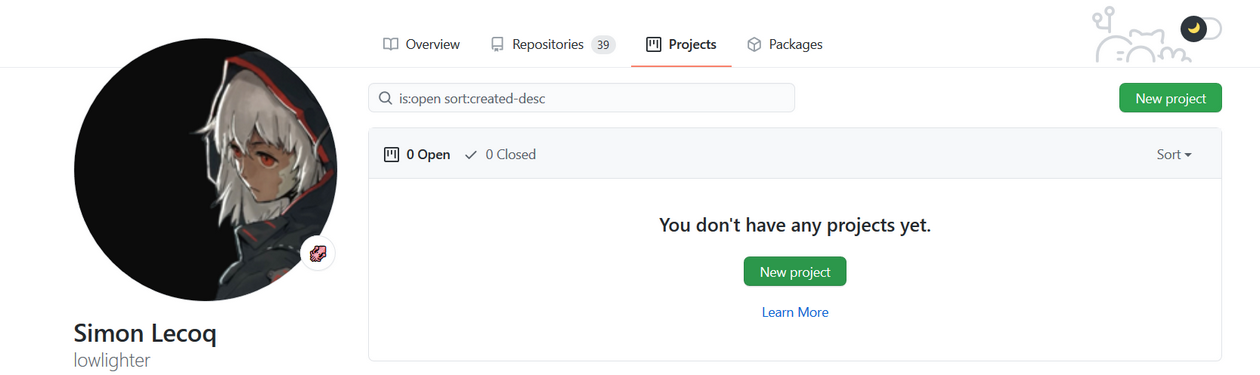

💬 Create a personal project on GitHub On your profile, select the `Projects` tab: ![Create a new project](.github/readme/imgs/plugin_projects_create.png) Fill the informations and set visibility to *public*: ![Configure project](.github/readme/imgs/plugin_projects_setup.png)

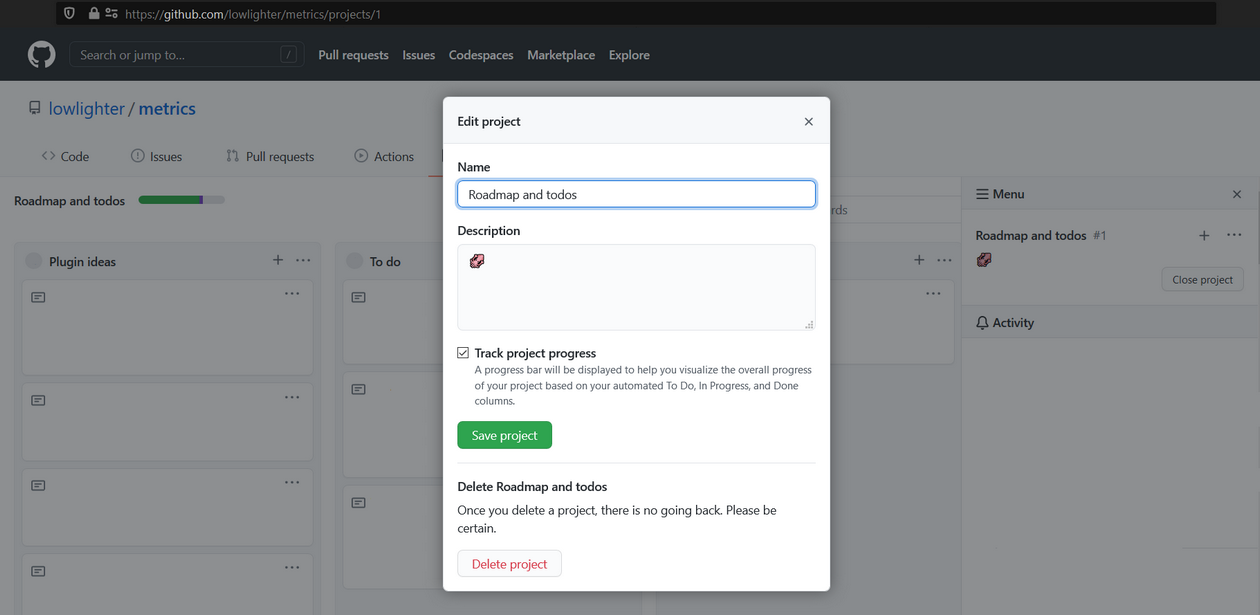

It is possible to display projects related to repositories along with personal projects. To do so, open your repository project and retrieve the last URL endpoint, in the format `:user/:repository/projects/:project_id` (for example, `lowlighter/metrics/projects/1`) and add it in the `plugin_projects_repositories` option. Enable `Track project progress` in the project settings to display a progress bar in generated metrics. ![Add a repository project](.github/readme/imgs/plugin_projects_repositories.png) Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_projects: yes plugin_projects_repositories: :user/:repository1/projects/:project_id, :user/:repository2/projects/:project_id, ... ```
### 👨‍💻 Lines The *lines* of code plugin displays the number of lines of code you have added and removed across all of your repositories. ![Lines plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.lines.svg)
💬 About It will consume an additional GitHub request per repository. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_lines: yes ```
### 🧮 Traffic ⚠️ This plugin requires a personal token with repo scope. The repositories *traffic* plugin displays the number of page views across your repositories. ![Traffic plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.traffic.svg)

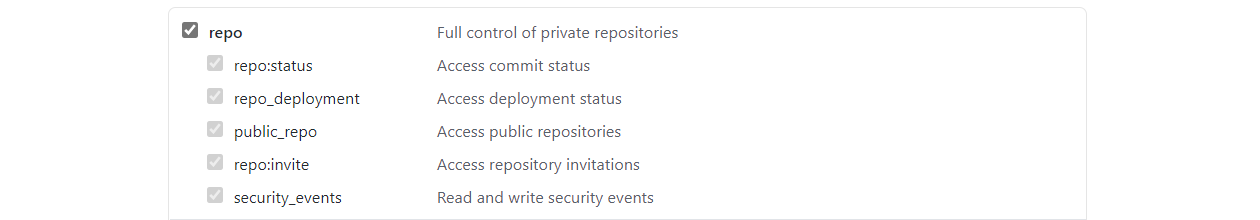

💬 About It will consume an additional GitHub request per repository. Because of GitHub REST API limitation, the provided token requires full `repo` scope to access traffic informations. ![Token with repo scope](.github/readme/imgs/setup_token_repo_scope.png) Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # Token with "repo" scope token: ${{ secrets.METRICS_TOKEN }} # ... other options plugin_traffic: yes ```
### 🐤 Tweets The recent *tweets* plugin displays your latest tweets of the [Twitter](https://twitter.com) account attached to your account. ![Tweets plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.tweets.svg)
💬 About Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_tweets: yes plugin_tweets_token: ${{ secrets.TWITTER_TOKEN }} ``` It is possible to use a different Twitter username from the one linked to your GitHub account by using `plugin_tweets_user` option. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_tweets_user: ******** ```

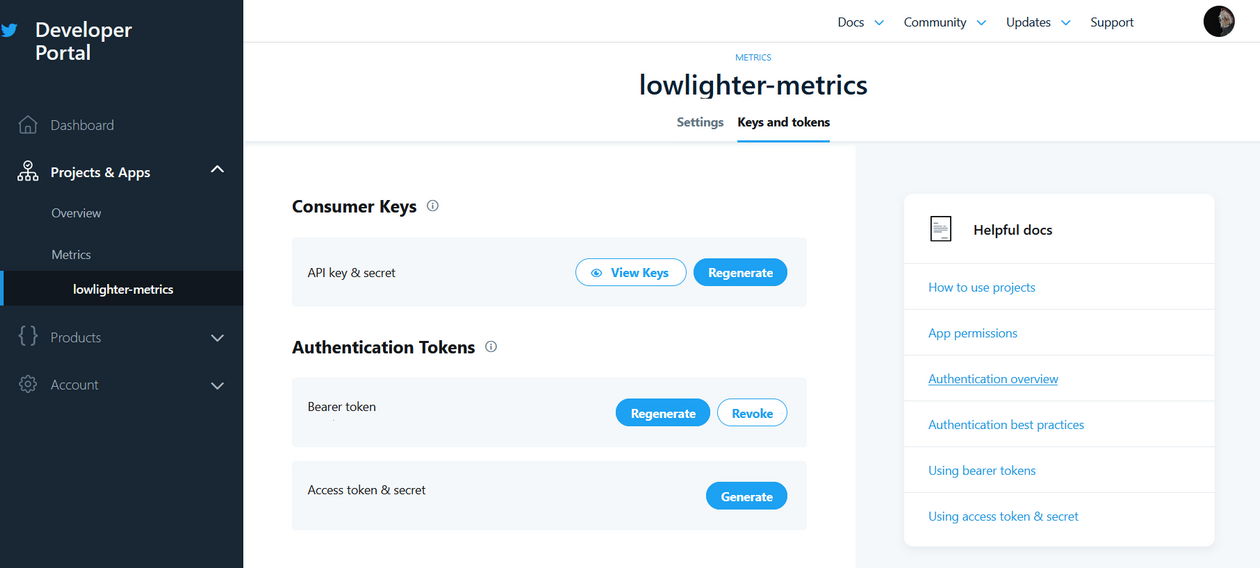

💬 Obtaining a Twitter token To get a Twitter token, you'll need to apply to the [developer program](https://apps.twitter.com). It's a bit tedious, but it seems that requests are approved quite quickly. Create an app from your [developer dashboard](https://developer.twitter.com/en/portal/dashboard) and register your bearer token in your repository secrets. ![Twitter token](.github/readme/imgs/plugin_tweets_secrets.png)
### ✒️ Posts The recent *posts* plugin displays recent articles you wrote on an external source, like [dev.to](https://dev.to). ![Posts plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.posts.svg)
💬 About Supported sources are: * [dev.to](https://dev.to) Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_posts: yes plugin_posts_source: ******** ``` It is possible to use a different username from your GitHub account by using `plugin_posts_user` option. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_posts_user: ******** ```
### 💡 Habits The coding *habits* plugin adds deduced coding habits based on your recent activity, from up to 1000 events. ![Habits plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.habits.svg)
💬 About It will consume an additional GitHub request per event fetched. Because of GitHub REST API limitation, provided token requires full `repo` scope to access **private** events. Events that cannot be fetched will be ignored so it is still possible to use this plugin with a scope-less token. A high value must be provided for `plugin_habits_from` in order for this section to be accurate, although it'll increase the number of GitHub requests sent. If you're using GitHub Api in other projects, you could reach the rate limit. ![Habits plugin (facts)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.habits.facts.svg) These facts are generated from your recent coding activity. The indent style is deduced from the diffs of your recent commits. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_habits: yes plugin_habits_from: 200 plugin_habits_days: 14 ``` You can display charts in this section: ![Habits plugin (charts)](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.habits.charts.svg) These charts are generated from your recent coding activity. Languages metrics are computed with [github/linguist](https://github.com/github/linguist) from the diffs of your recent commits. Add the following to your workflow instead: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_habits: yes plugin_habits_from: 200 plugin_habits_days: 14 plugin_habits_facts: yes plugin_habits_charts: yes ``` By default, dates are based on the Greenwich meridian (GMT/UTC). In order to these metrics to be accurate, be sure to set your timezone (see [here](https://en.wikipedia.org/wiki/List_of_tz_database_time_zones) for a list of supported timezones): ```yaml - uses: lowlighter/metrics@latest with: # ... other options config_timezone: Europe/Paris ```
### 📰 Activity The *activity* plugin displays your recent activity on GitHub. ![Activity plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.activity.svg)
💬 About It will consume an additional GitHub request. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_activity: yes plugin_activity_limit: 5 plugin_activity_days: 14 # Max age for events, set to 0 for unlimited ``` Metrics use data from [GitHub events](https://docs.github.com/en/free-pro-team@latest/developers/webhooks-and-events/github-event-types) and is able to track the following events: | Event | Description | | ------------ | ----------------------------------------------- | | `push` | Push of commits | | `issue` | Opening/Reopening/Closing of issues | | `pr` | Opening/Closing of pull requests | | `ref/create` | Creation of git tags or git branches | | `ref/delete` | Deletion of git tags or git branches | | `release` | Publication of new releases | | `review` | Review of pull requests | | `comment` | Comments on commits, issues and pull requests | | `wiki` | Edition of wiki pages | | `fork` | Forking of repositories | | `star` | Starring of repositories | | `public` | Repositories made public | | `member` | Addition of new collaborator in repository | It is possible to filter the type of events you want to display by using `plugin_activity_filter` option. Use the special value `"all"` (default value) to track all events. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_activity: yes plugin_activity_filter: issue, pr ```
### 🌟 Stars The *stars* plugin displays your recently starred repositories. ![Stars plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.stars.svg)
💬 About It will consume an additional GitHub request. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_stars: yes plugin_stars_limit: 4 ```
### ✨ Stargazers The *stargazers* plugin displays your stargazers evolution across all of your repositories over the last two weeks. ![Stargazers plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.stargazers.svg)
💬 About It will consume additional GitHub requests per repository per set of 100 stargazers. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_stargazers: yes ```
### 🎫 Gists The *gists* plugin displays your [gists](https://gist.github.com) metrics. ![Gists plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.gists.svg)
💬 About It will consume an additional GitHub request per gist fetched. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_gists: yes ```
### 🧑‍🤝‍🧑 People The *people* plugin displays your followers and followed users' avatars. ![People plugin](https://github.com/lowlighter/lowlighter/blob/master/metrics.plugin.people.svg)
💬 About It will consume an additional GitHub request per group of 100 users fetched. Add the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_people: yes plugin_people_types: followers, following plugin_people_limit: 28 plugin_people_size: 28 # Size in pixels of displayed avatars ``` It is possible to use [identicons](https://github.blog/2013-08-14-identicons/) instead of their avatar for privacy purposes. ```yaml - uses: lowlighter/metrics@latest with: # ... other options plugin_people_identicons: yes ```
### 🔧 Other options A few additional options are available. See all supported options in [action.yml](action.yml).
💬 About #### 🌐 Set timezone By default, dates are based on the Greenwich meridian (GMT/UTC). It is possible to set set your timezone (see [here](https://en.wikipedia.org/wiki/List_of_tz_database_time_zones) for a list of supported timezones) by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options config_timezone: Europe/Paris ``` #### 📦 Ordering content It is possible to order metrics content by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options base: header plugin_isocalendar: yes plugin_languages: yes plugin_stars: yes config_order: base.header, isocalendar, languages, stars ``` Content ordering is done through "[partials](https://github.com/lowlighter/metrics/blob/master/source/templates/classic/partials/_.json)", which are actually content chunks of generated metrics, which may vary from one template to another. It is not mandatory to specify all partials, as the rest will automatically be appended in the default order. #### 🔲 Adjust padding The height of the generated metrics image is computed after being rendered through an headless browser. As rendering can depends on used fonts and operating system, it may render as cropped or with additional blank space at the bottom. It is possible to adjust the padding by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options config_padding: 6% ``` Both positive and negative values are accepted, but you must specify a percentage. If you specify a single value, it'll be used as for both width and height padding. When two values are specified separated by a comma, the first one will be used for width and the second for height. #### 🎋 Using a specific branch instead of default Is is possible to commit generated metrics in a specific branch rather than default branch by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options committer_branch: my-branch ``` #### 🍴 Including forked repositories Is is possible to include forked repositories into generated metrics by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options repositories_forks: yes ``` #### 💱 Convert output to PNG/JPEG It is possible to convert output from SVG to PNG or JPEG images by adding the following to your workflow: ```yaml - uses: lowlighter/metrics@latest with: # ... other options config_output: png ``` Note that `png` does not support animations while `jpeg` does not support both animations and transparency.
## 💪 Contributing and customizing To suggest a new feature, find a bug or need help, fill an [issue](https://github.com/lowlighter/metrics/issues) describing your problem or your needs. If you're motivated enough, you can submit a [pull request](https://github.com/lowlighter/metrics/pulls) to integrate new features or to solve open issues. Read [CONTRIBUTING.md](CONTRIBUTING.md) for more information about this. ## 📖 Useful references * [GitHub GraphQL API](https://docs.github.com/en/graphql) * [GitHub GraphQL Explorer](https://docs.github.com/en/free-pro-team@latest/graphql/overview/explorer) * [GitHub Rest API](https://docs.github.com/en/rest) * [GitHub Octicons](https://github.com/primer/octicons) * See [GitHub Logos and Usage](https://github.com/logos) for more information. ### ✨ Inspirations * [anuraghazra/github-readme-stats](https://github.com/anuraghazra/github-readme-stats) * [jstrieb/github-stats](https://github.com/jstrieb/github-stats) * [ankurparihar/readme-pagespeed-insights](https://github.com/ankurparihar/readme-pagespeed-insights) * [jasonlong/isometric-contributions](https://github.com/jasonlong/isometric-contributions) * [jamesgeorge007/github-activity-readme](https://github.com/jamesgeorge007/github-activity-readme)
